CLEAN, QUIET, ELECTRIC POWER.

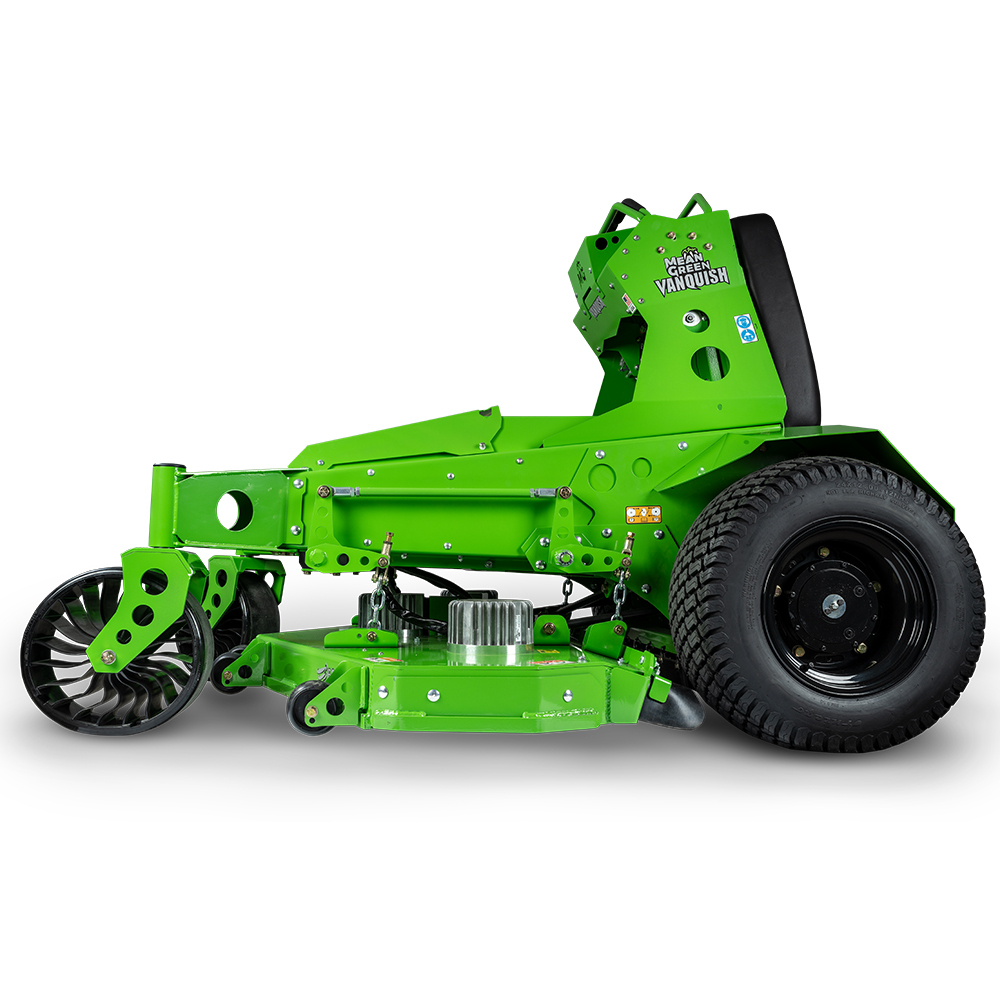

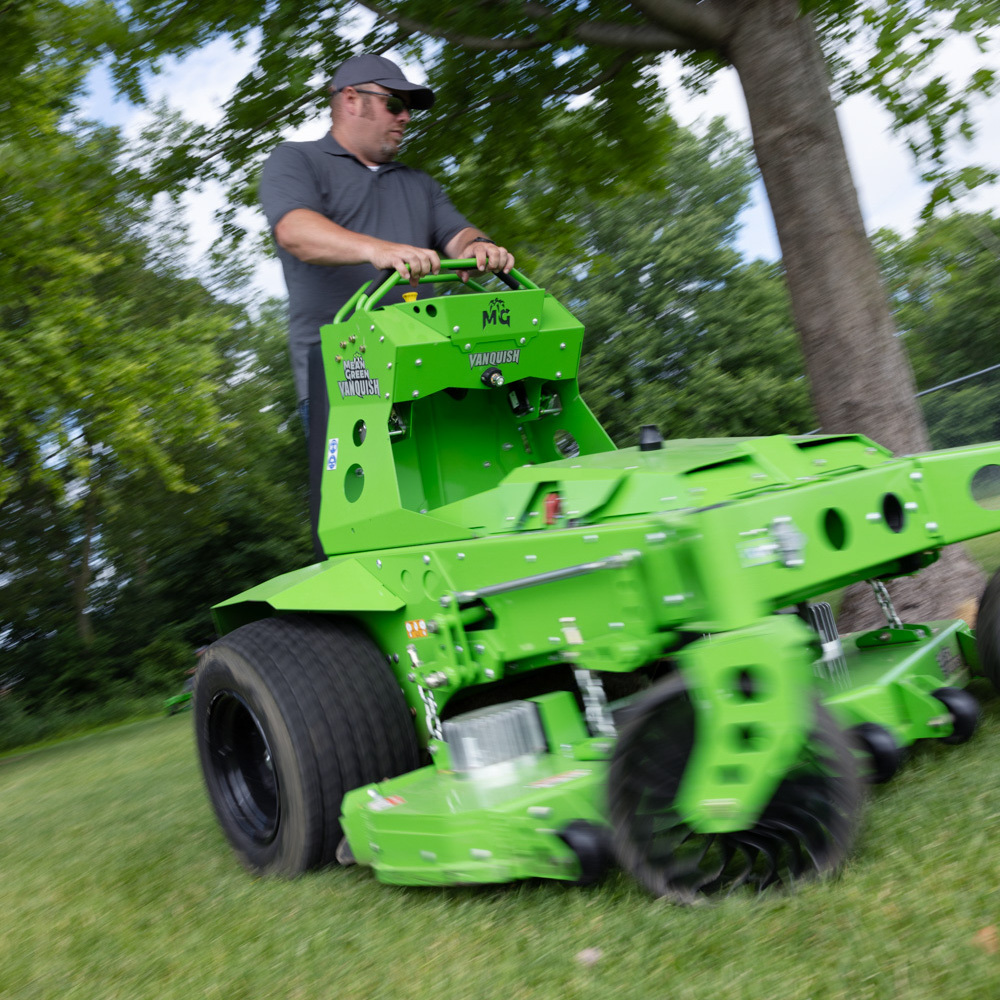

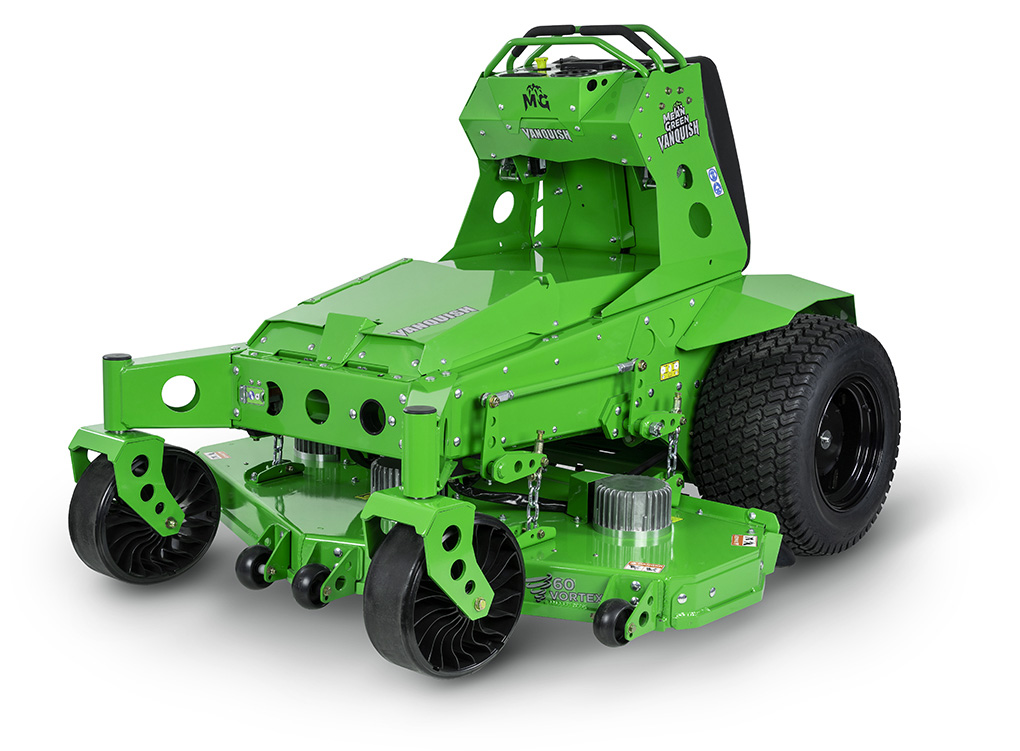

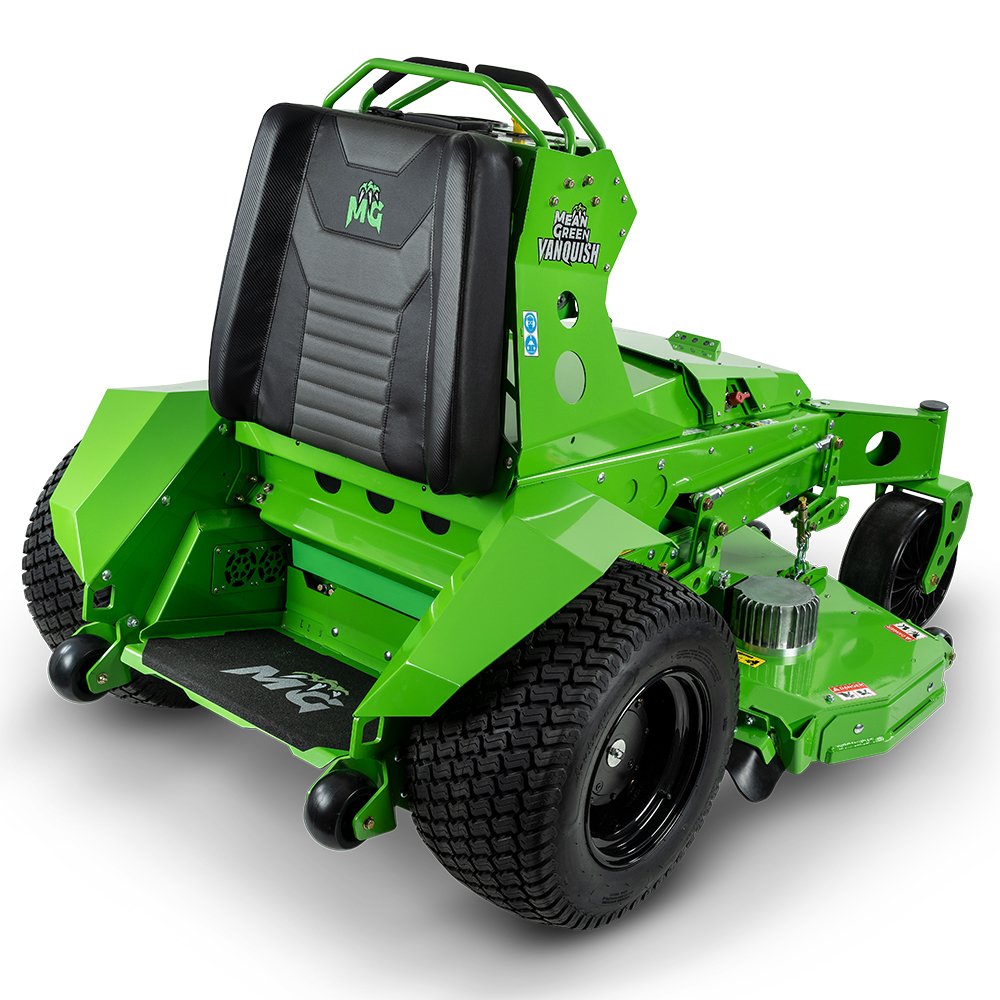

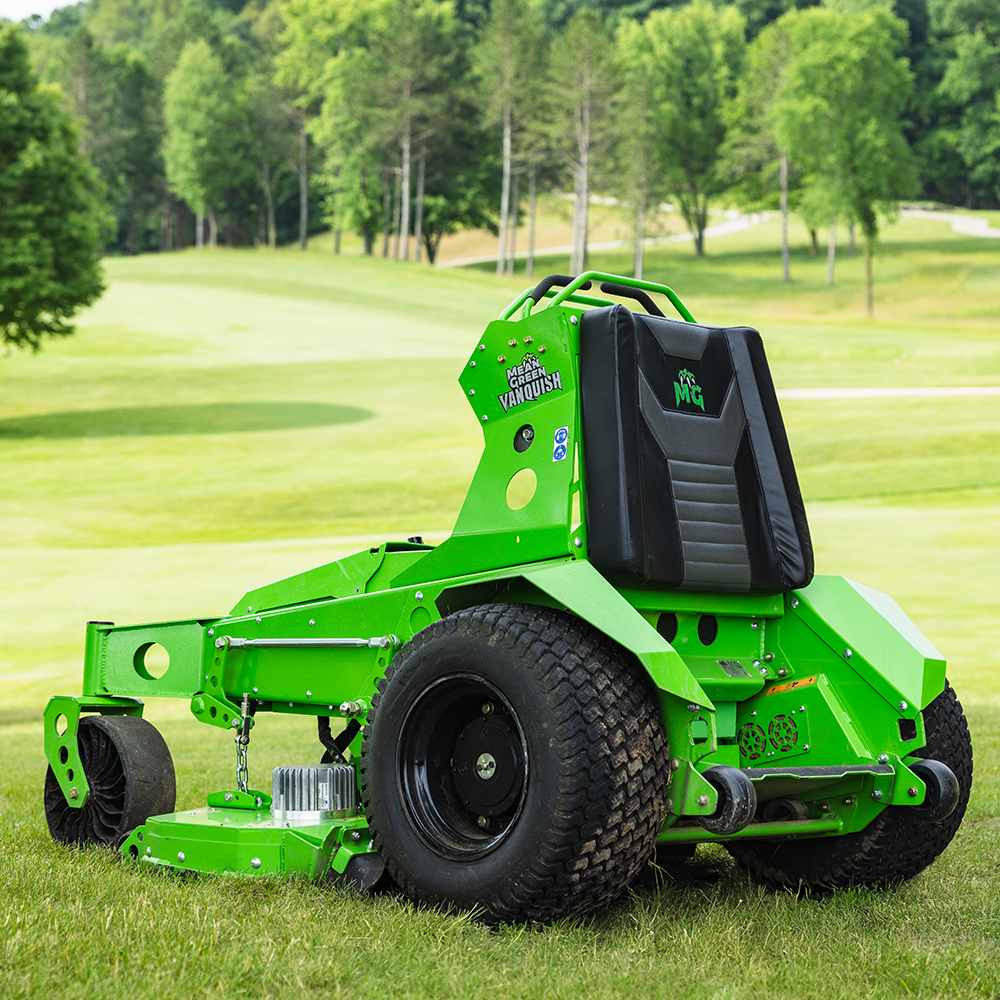

The new VANQUISH™ model brings stand-on mowing to the Evolution Series of commercial, electric mowers. Available with a 52″ or 60″ cut (side/rear discharge), the VANQUISH runs for up to seven hours continuously at speeds of up to 11.5 mph. It features Mean Green’s patented ZTR technologies that make it competitive with any gas mower in its class. The VANQUISH is a quiet, low maintenance, zero emission mower that is built for all-day professional use.



OVERVIEW

SPEED & POWER

The Vanquish was designed with maximum power in mind. We knew it had to compete with the most powerful gas and diesel engine mowers on the market, so we combined known time tested planetary gearing with the latest electric hub motor technology. The results are impressive with almost three times the power and weight carrying capability compared to our current, already powerful, 60″ mower! While power is important for maintaining speed while cutting thick grass, the Vanquish also shines with forward ground speed of 11.5 mph to compete with or exceed most any popular 60″ gas or diesel mower on the market.

SMART & EFFICIENT

Speed and power are obviously important for commercial operations, but having a mower that is smart and efficient is also key. The Vanquish is constructed of a strong aluminum alloy which provides great strength with super lightweight efficiency. Less weight means less power to move around which means longer run times per battery charge. The Vanquish also has more smart technology than most any mower. Our full CANbus communication system allows all of our components to “talk” to each other to provide the most efficient operation. Our patent pending deck lift system can be operated with the push of a button on our new touch screen display. The new more powerful blade controllers monitor the blade motors to deliver more power than ever but only when needed.  The two speed blade speed and drive speed options allow the operator to pick the most efficient or most powerful setting.

QUIET ENDURANCE

The Vanquish is most impressive in the areas of low noise and endurance. Several optional battery packs allow for cutting times of up to 7 hours on one charge!  At the high speeds of the Vanquish, that can add up to 15 acres of mowing per charge. Mowing can start early in the morning as well because the Vanquish has a super low noise level of just 78dba which is no louder than light car traffic outside your house.

Evolution Commercial Series


Unprecedented power, control and connection

IMPULSE DRIVE SYSTEM (IDS)™

Designed with maximum power in mind, Mean Green has combined time tested planetary gearing and the latest electric hub motor technology resulting in our impressive, leading edge, Impulse Drive System (IDS)™ generating unrivaled power and weight carrying capacity. 37 horsepower diesel mower equivalent with forward ground speed of 0 – 11.5 mph in 1.3 seconds.

INTERACTIVE TOUCH SCREEN DISPLAY

The durable Interactive Touch Screen Display with pass code and administrator mode is function tested in all environments to ensure long term reliability. The touch screen displays full functionality of the machine including battery consumption, state of charge, deck lift system, blade speed control, and drive speed settings. EASY push button START – NO keys needed!

guide

EXCEPTIONAL TRAILER UTILIZATION

The Impulse Drive System (IDS)™ and the “Y” shaped front beam configuration allow for a compact footprint for optimal trailer utilization.

SMARTDECK™ RAPID HEIGHT DECK LIFT SYSTEM

Our SmartDeck™ rapid height deck lift system can be operated with the push of a button. When approaching curbs or obstacles, a simple touch of the stand-alone electronic rocker switch will completely elevate the deck within 2.8 seconds!

guide

STANDARD FRONT TWEELS

Designed to achieve excellent cutting results and outstanding rider comfort, while eliminating downtime caused by flat tires and unseated beads.

20 DEGREE SLOPE CAPABILITY

Stability on slopes up to 20 degrees due to the Evolution Series mass centralized, ultra-low center of gravity, and engineered battery configuration located only 8 inches above the ground.

SPECIFICATIONS


STANDARD EQUIPMENT

  • Touch Screen Display
  • Impulse Drive System(IDS)™
  • Side Discharge
  • Cup Holder
  • Michelin Tweels (front)
  • SmartDeck™ Electronic Deck Lift System
  • High/Low Blade Speed Control
  • Dual Support Anti-Scalp Wheel Mounts

OPTIONAL EQUIPMENT

  • Rear Discharge Mulching Deck
  • LED Floodlight Kit with USB Port
  • LED Orange Flashing Light
  • ZTR Jack
  • ORV-Blast Blower Package

OVERVIEW

VIRTUALLY MAINTENANCE FREE

Say goodbye to gas and fumes, hard starts and thrown belts, fouled spark plugs and annual tune-ups!

ULTRA QUIET OPERATION

With less than HALF the noise of a gas-powered mower, you can start early or mow late without disturbing homeowners.

REAL POWER, ALL DAY LONG

Equivalent to a 36 HP gas mower, the VANQUISH is a commercial duty mower you can run for up to seven hours continuously.

SPECIFICATIONS


MOWER DECK

  • Deck Type: Fabricated 1/4” Aluminum
  • Cutting Width/Blades: 52”SD/3 blades, 52”RD/3 blades, 60”SD/3 blades, 60”RD/3 blades
  • Deck Height: Electric 1.5” – 5.5”
  • Vortex Side Discharge Deck
  • Vortex Rear Discharge/Mulching Deck Opt
  • Anti-scalp Dual Support Wheels

BATTERY

  • Run Time: Up to 7 hours
  • Battery Life: 6,000–9,000 hours
  • Battery Power: 22kWh Pack

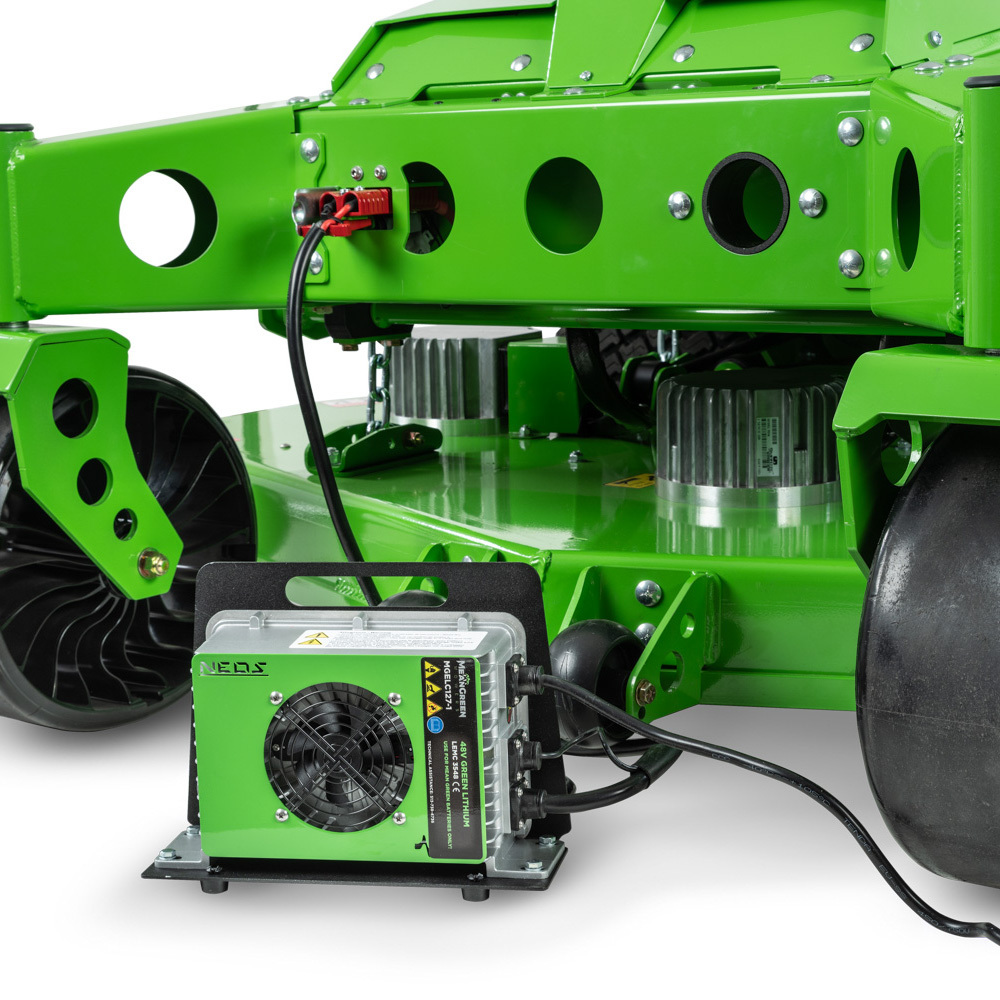

  • Charge Time: 12 hr (240VAC), 15 hr (120VAC)

POWER SYSTEM

  • Powertrain: Impulse Drive System (IDS)™
  • Deck Motor Power: 8.25 KW (3ea 2.75kW motors)
  • Drive Motor Power: 6.8 KW (2ea 3.4kW motors)
  • Comparable Horsepower: 36 HP Equivalent

RATING/DIMENSIONS

  • Slope Rating: 20 degrees
  • Weight: 1,180 lbs
  • Wheel Size: Front: 13″ Rear: 24″ x 12″
  • Length/Width/Height:
    • 52”SD Chute Down-65.75”W
    • Chute Up-53.75”W 52”RD- 54.5W
    • 60”SD Chute Down 72.5”W
    • Chute Up 60.5”W
    • 60”RD- 61.5”W
    • 52” – 72”L x 51”H
    • 60”-72” x 51”H

OPERATIONS

  • SMARTDECK™ Electronic Deck Lift with Foot Pedal
  • Forward Speed: 0-11.5 mph
  • Reverse Speed: 0-5 mph
  • Sound Level: 78db
  • Blade Tip Speed (High/Low): 18,000 fpm/16,500 fpm
  • Electromagnetic Parking Brake
  • Drive Speed (High/Low) Switch
  • Blade Speed (High/Low) Switch
  • Drive/Component Cooling System
  • Operator Touchscreen Display

WARRANTY

  • Mower: 2 Year Limited
  • Battery: 3 Year Limited

OPTIONAL EQUIPMENT

  • Front Blower
  • Standard Michelin Fton Tweels
  • Cup Holder
  • Mobile Phone Holder
  • Mower/Battery Safety Compliance: ANSI B71.1-2012, United nations UN 38.3 Certified. Europe CE Pending

ELECTRIC DECK LIFT

Gives you push button control of cutting height in .25" increments. Choice of side- or rear-discharge (rear-discharge shown).

3 BLADE DECK

With choice of 52" or 60" mowing width. The VANQUISH is the fastest electric stand- on mower on the market!

OPTIONAL JACK

For maintenance tasks, including blade sharpening/replacement, and installing/ removing mulch baffles.
